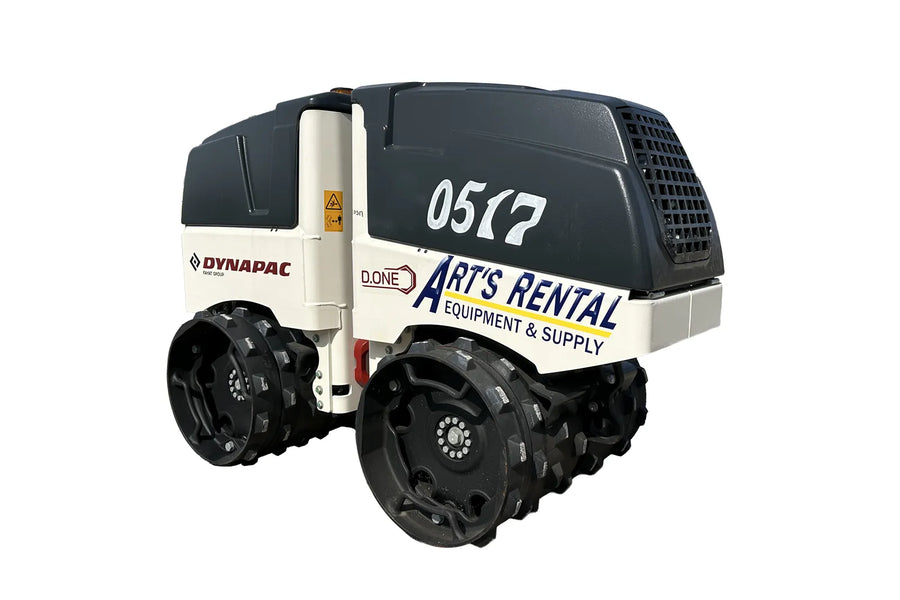

MODEL- DYNAPAC D.ONE TRENCH ROLLER

• DIMENSIONS- L= 74.7"/ W= 24"-33.5"/ H= 50.2"
• WEIGHT- 3516 lbs.
• DRUM WIDTH- 24" or 33.5" (ADJUSTABLE)
• CENTRIFUGAL FORCE- Front= 1,186 lb/ft.....Rear= 8,093 lb/ft.
• FREQUENCY- 2520 Vpm
• AMPLITUDE- Front= .044....Rear= .022
• PRODUCTION- @ 10,650 sq.ft./ hr.
• TRAVEL SPEED- Lo= .8 MPH....Hi= 1.7 MPH
• GRADEABILITY- Approx. 55% wo/Vib......45% w/Vib.
• CONTROLLER- Radio Controlled, Max. Distance- N/A, Bat. Life- N/A
• FUEL CAPACITY- 6.3 Gallons
• ENGINE- KUBOTA..D1005 19.4-HP..Tier 4 Diesel

MODEL- WACKER..RTLx-SC3 or RTKx-SC3 TRENCH ROLLER

• DIMENSIONS- L= 73"/ W= 22"-32"/ H= 50"
• WEIGHT- 3295 lbs.
• DRUM WIDTH- 22" or 32" (ADJUSTABLE)
• CENTRIFUGAL FORCE- Lo= 7688 lb/ft.....Hi= 15,377 lb/ft.
• FREQUENCY- 2500 Vpm
• PRODUCTION- @ 10,650 sq.ft./ hr.
• TRAVEL SPEED- 1.5 MPH
• GRADEABILITY- Approx. 50% wo/Vib......45% w/Vib.
• TURN RADIUS- 63" Inside
• CONTROLLER- Wireless Infra-Red, Max. Distance- 65', Bat. Life- 16 Hrs.
• FUEL CAPACITY- 3 Gallons

ENGINE- (L) KOHLER..KDW 1.003 19.8-HP/ (K) KUBOTA..D902 20.8-HP
