MODEL- JLG..G9-43A SHOOTING BOOM FORKLIFT

• EQUIPPED w/ Enclosed Cab, Heat,, & Solid Tires, Some w/ Work Lights.
• DIMENSIONS- L= 19' 10"/ W= 7' 11"/ H= 8'
• WEIGHT- 26,780 lbs.
• MAX LIFT HEIGHT- 43'
• MAX REACH- 30' 7"
• FORK LENGTH- 48" or 60"
• RATED LIFT CAPACITY- 9,000 lbs. (SEE LOAD CHART)
• CAPACITY @ MAX HEIGHT- 7,000 lbs. (24" Load Center)
• CAPACITY @ MAX REACH- 1,200 lbs. (24" Load Center) STEERING- 2 Wheel, 4 Wheel, Crab
• DRIVE- 4-Wheel
• TIRES- SOLID 370/75-28
• TRAVEL SPEED- 20 MPH
• FRAME TILT- 10° R. & L.
• TURN RADIUS- 144" (Outside)
• GROUND CLEARANCE- 17"
• WHEELBASE- 132"
• ENGINE- CUMMINS..QSB3.3L 100-HP (Diesel)
• TRANSMISSION- 4-Forward, 3-Reverse Powershift
• FUEL CAPACITY- 38 Gallons

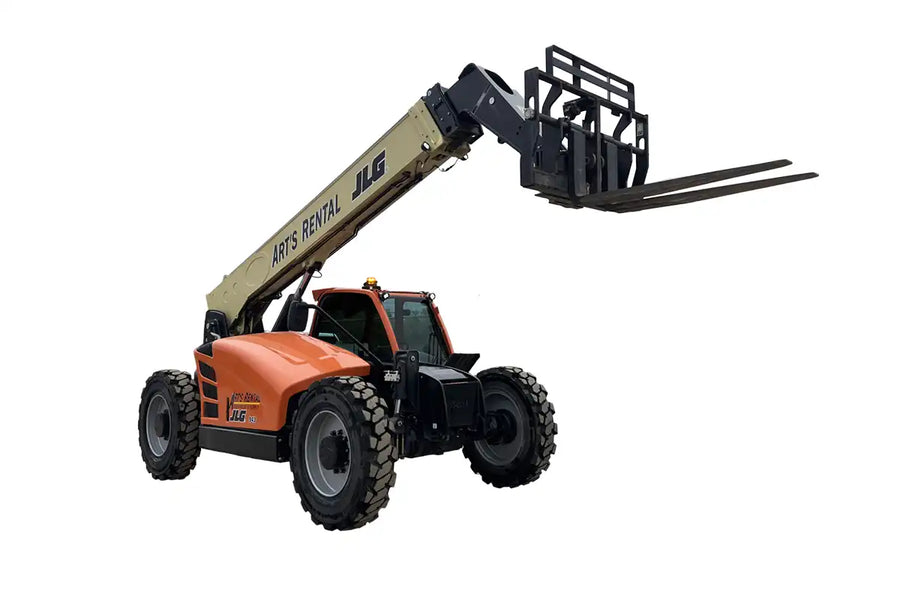

MODEL- JLG..943 SHOOTING BOOM FORKLIFT

• EQUIPPED w/ Open Cab, & Solid Tires, Work Lights, & Road Lights
• DIMENSIONS- L= 19' 9" + Forks/ W= 8' 1"/ H= 8' 2"
• WEIGHT- 24,900 lbs.
• MAX LIFT HEIGHT- 43'
• MAX REACH- 30' 5"
• FORK LENGTH- 60"

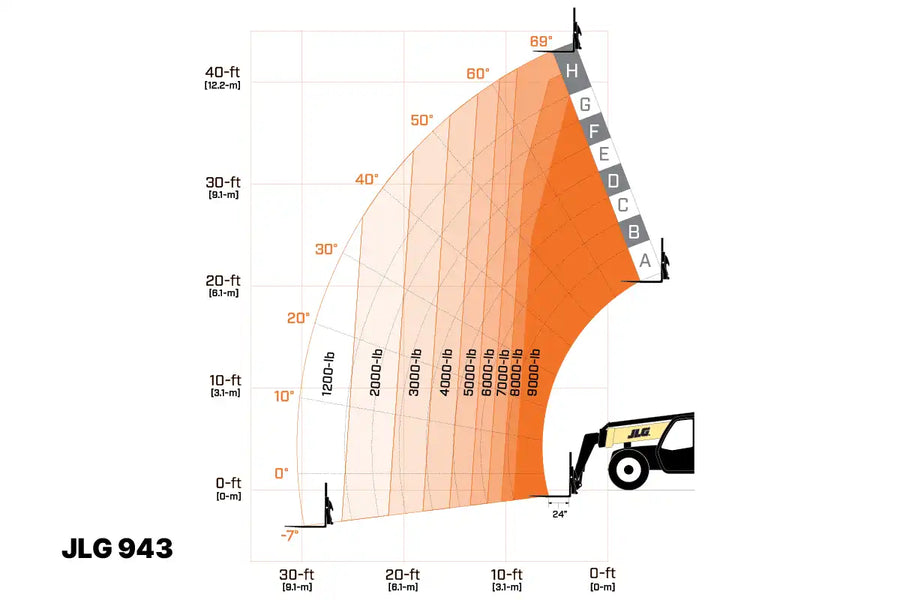

• RATED CAPACITY- 9000 lbs. (SEE LOAD CHART)
• CAPACITY @ MAX HEIGHT- 7,000 lbs. (24" Load Center)
• CAPACITY @ MAX REACH- 1,200 lbs. (24" Load Center)
• STEERING- 2 Wheel, 4 Wheel, Crab
• DRIVE- 4 Wheel
• TIRES- Solid 370/75-28
• TRAVEL SPEED- 19 MPH
• FRAME TILT- 10° R. & L.
• TURN RADIUS- 144" (Outside)
• GROUND CLEARANCE- 17"
• WHEELBASE- 135"
• ENGINE- CUMMINS..QSF3.8L Tier 4 74-HP (Diesel)
• TRANSMISSION- 4-Forward, 3-Reverse, Powershift
• FUEL CAPACITY- 38 Gallons
