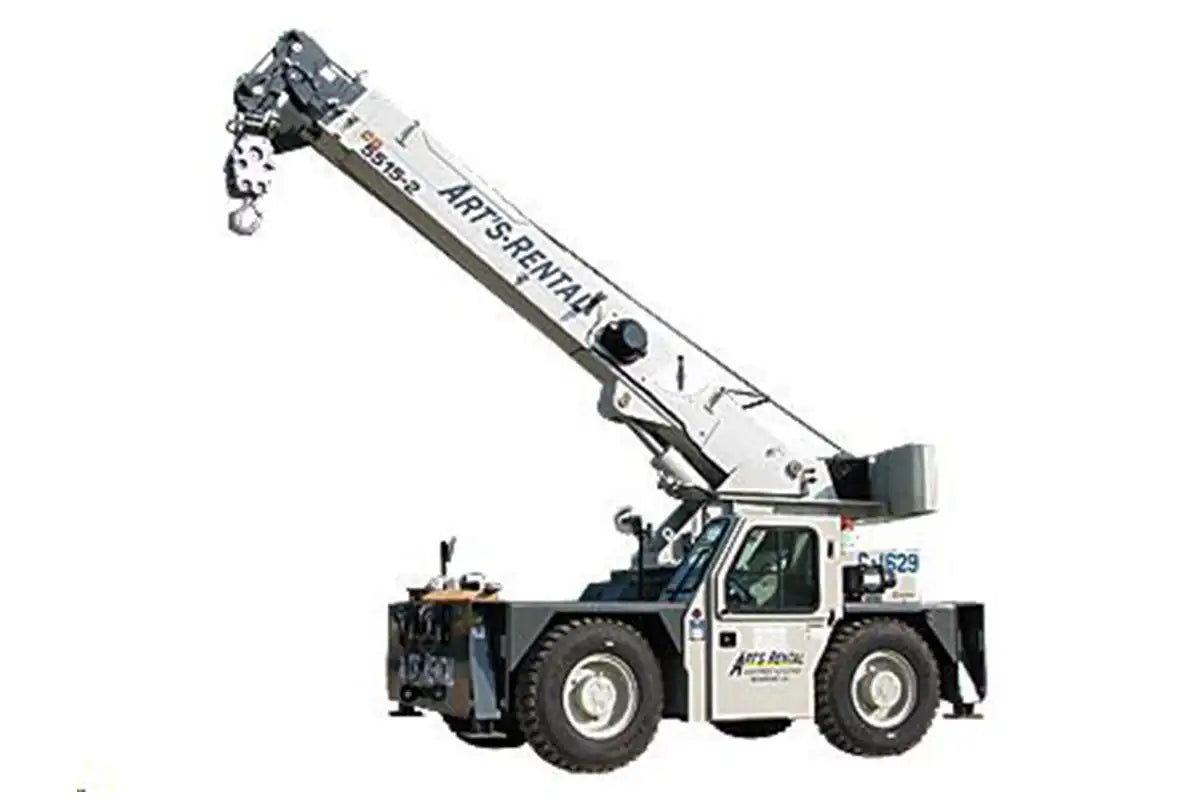

MODEL- SHUTTLELIFT..SCD15 w/CAB, & 4 SECTION BOOM & 15' JIB

• ENCLOSED CAB- w/Heater, Defroster, & Windshield Wiper/ Washer (Front) NO A/C
• DIMENSIONS- L= 22' 6" / W= 8' (12' 4" on Outrigrs) / H= 8' 2" (Transpt)
• WEIGHT- 26,300 lbs. + 3,665 lb. Counterweight ?
• BOOM REACH- V= 54', H= 46'
• REACH w/JIB- V= 69', H= 61.5'
• MAX LIFT CAPACITY- 30,000 lbs.

SEE LOAD CHART

• MAX DECK CAPACITY- 18,000 lbs.
• ROTATION- 360° Continuous
• PIVOTING BOOM NOSE- 3 Offset Positions...0°, 40°, & 80° 3 Negative Offsets... 0°, 15°, & 30°
• STEERING- 2 Wheel, 4-Wheel, or Crab
• TURN RADIUS- 9' 5" Outside (4 Wheel Steer)
• MAX SPEED- 16.8 MPH
• GRADEABILITY- 68% @ No Load..40% @ Max Load
• ENGINE- CUMMINS QSB3.3T..Dsl..99-HP
• FUEL CAPACITY- 40 Gallons
• MODEL- SHUTTLELIFT..5540F w/3-SECTION BOOM & 15' JIB Some with Oxy Muffler
• DIMENSIONS- L= 21' 6" / W= 8' (13' 10" on Outrgrs) / H= 7' 11" (Transpt)
• WEIGHT- 27,186 lbs.
• BOOM REACH- V= 41', H= 38'
• REACH w/JIB- V= 56', H= 53'
• MAX LIFT CAPACITY- 30,000 lbs.

SEE LOAD CHART

• MAX DECK CAPACITY- 20,000 lbs.
• ROTATION- 360° Continuous
• STEERING- 2-Wheel, 4-Wheel, or Crab
• TURN RADIUS- 2-Wheel Steer= 21' 6"/ 4-Wheel Steer= 12' 4" Outside
• MAX SPEED- 14.5 MPH
• GRADEABILITY- 73% @ No Load..41% @ Full Load
• ENGINE- CUMMINS 4B3.9 Dsl..80-HP
• FUEL CAPACITY- 40 Gallons
