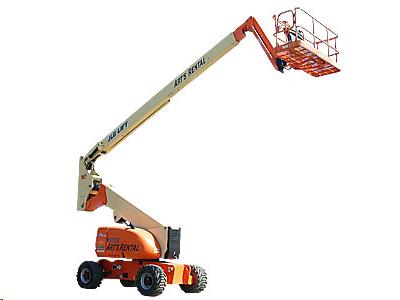

MODEL- JLG..800AJ ARTICULATING BOOM LIFT Diesel 4x4

• EQUIPPED w/ 7500 Wt Generator, Foam F. Tires, Some w/ Skyguard
• DIMENSIONS- Stowed L= 36' 6"/ W= 8' 2"/ H= 9' 10"
• WEIGHT- 33,800 lbs.
• WORKING HEIGHT- 86'
• PLATFORM HEIGHT- 80' Max.
• HORIZONTAL REACH- 51' 10" Max.
• PLATFORM DIMENSIONS- 36" x 96"
• PLATFORM CAPACITY- 500 lbs.
• PLATFORM ROTATION- 180°
• JIB RANGE- 6'/ 130° (+70° ,-60° )
• TURNTABLE ROTATION- 360° Continuous
• UP & OVER CLEARANCE- 32' 1"
• TAIL SWING- 2' 6"
• TURN RADIUS- 22' 6" Outside/ 7' Inside
• TRAVEL SPEED- 3 MPH Stowed/ .6 MPH Raised
• DRIVE- 4-Wheel
• TIRES- Foam Filled All Terrain 15-625
• GRADEABILITY- 45% -Stowed Only-
• GROUND CLEARANCE- 12"
• ENGINE- DEUTZ..TD2.9L Tier 4 Diesel 67-HP
• FUEL CAPACITY- 39 Gallons
• GENERATOR- 7500 Watt

MODEL- GENIE Z80/60 ARTICULATING BOOM LIFT Diesel 4x4

• w/ Foam Filled Tires, & Skyguard. (NO GENERATOR)
• DIMENSIONS- Stowed L= 37'/ W= 8' 2"/ H= 9' 10"
• WEIGHT- 35,900 lbs.
• WORKING HEIGHT- 84'
• PLATFORM HEIGHT- 78' Max.
• HORIZONTAL REACH- 60 Max.
• PLATFORM DIMENSIONS- 36" x 96"
• PLATFORM CAPACITY- 500 lbs.
• PLATFORM ROTATION- 160°
• VERTICAL JIB ROTATION- 135°
• TURNTABLE ROTATION- 360° Continuous
• UP & OVER CLEARANCE- 29'
• TAIL SWING, Riser Up- 3'10"____Riser Down- 7'4"
• TURN RADIUS- 24' 6" Outside/ 14'6" Inside
• TRAVEL SPEED- 3 MPH Stowed/ .68 MPH Raised
• DRIVE- 4-Wheel
• TIRES- Foam Filled Rough Terrain 18-625NHS
• GRADEABILITY- 30% -Stowed Only-
• GROUND CLEARANCE- 12"
• ENGINE- DEUTZ..2.9L Tier 4 Diesel 74-HP
• FUEL CAPACITY- 35 Gallons
• GENERATOR- Not Available
