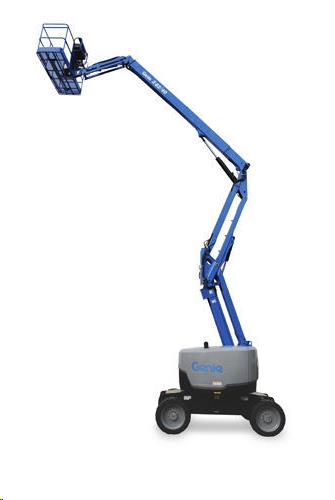

MODEL- GENIE..Z-45/25J RT ARTICULATING BOOM LIFT w/Jib 4x4

• DIMENSIONS- Stowed L= 21' 10"/ W= 7' 6"/ H= 7'
• WEIGHT- 13,500 lbs.
• WORKING HEIGHT- 51' 6"
• PLATFORM HEIGHT- 45' 6" Max.
• HORIZONTAL REACH- 24’ 8”
• PLATFORM DIMENSIONS- 72" x 30"
• PLATFORM CAPACITY- 500 lbs.
• PLATFORM ROTATION- 160°
• JIB RANGE- 135°
• TURNTABLE ROTATION- 355°
• UP & OVER CLEARANCE- 23' 5"
• TAIL SWING- Zero
• TURN RADIUS- 5' 6" Inside/ 14’ 9” Outside
• TRAVEL SPEED- Stowed= 4.8 MPH/ Raised= .6 MPH
• DRIVE- 4 Wheel
• TIRES- All Terrain 14-17.5
• GRADEABILITY- 45% -Stowed Only-
• GROUND CLEARANCE- 1’ 3”
• ENGINE– DEUTZ..F3L 1011 Diesel 36-HP

MODEL- JLG..450AJ ARTICULATING BOOM LIFT G/P w/Jib 4x4

• DIMENSIONS- Stowed L= 21' 7"/ W= 7' 9"/ H= 5'
• WEIGHT– 12,650 lbs.
• WORKING HEIGHT- 51'
• PLATFORM HEIGHT- 45’ Max.
• HORIZONTAL REACH– 25’
• PLATFORM DIMENSIONS- 30” x 72”
• PLATFORM CAPACITY- 550 lbs.
• PLATFORM ROTATION- 160°
• JIB RANGE- 144°
• TURNTABLE ROTATION- 355°
• UP & OVER CLEARANCE- 24’
• TAIL SWING- Zero
• TURN RADIUS– 6' 9" Inside/ 15’ 8” Outside
• TRAVEL SPEED- 4.5 MPH -Stowed-
• DRIVE- 4 Wheel
• TIRES- All Terrain
• GRADEABILITY- 45% -Stowed Only-
• GROUND CLEARANCE- 16.4"
• ENGINE- GM..Vortec 3000 MPF Gas/Propane 82-HP
