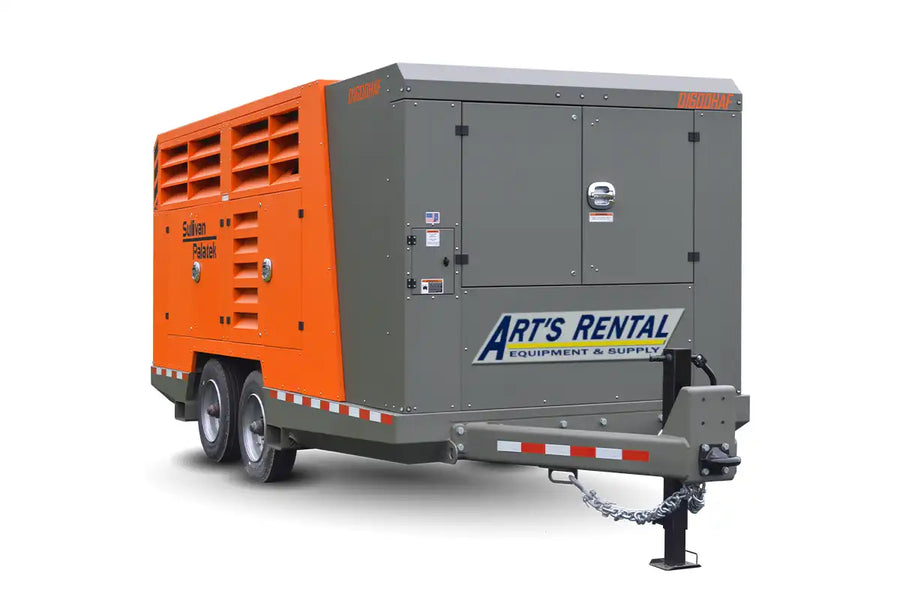

MODEL- SULLIVAN-PALATEK D1600PH1CU4AF-IQ

• AIR COMPRESSOR
• DIMENSIONS- L= 254"/ W= 90"/ H= 112"
• WEIGHT- 19,500 Serviced
• AIR FLOW- 1600 CFM @ 150 PSI
• PRESSURE RANGE- 90-170 PSI
• FUEL TANK- 224 Gallons
• ENGINE- CUMMINS..QSX15 Tier 4 Final
• DEF- 15 Gal. Tank

MODEL- DOOSAN / I.R. HP-1600-IQ

• AIR COMPRESSOR
• DIMENSIONS- L= 222.4"/ W= 90"/ H= 87.6"
• WEIGHT- 15,350 lbs. (Dry) / 17,040 lbs. (Wet)
• AIR FLOW- 1600 CFM @ 150 PSI
• PRESSURE RANGE- 80-175 PSI
• FUEL TANK- 196 Gallons..(2 98 Gal. Tanks)
• ENGINE- CUMMINS..QSX15 Tier 3

IQ System Produces "INSTRUMENT QUALITY AIR". Air Is Filtered To Remove Particulates To Less Than .01 Micron. Oil & Water To .01 Parts/Million. The Cleaned Air Is Cooled & Discharged @ Only 20-DEG. Above Ambient Temp.

NOTE THIS COMPRESSOR USES ABOUT 20 GAL. FUEL/HR. @ FULL LOAD.
